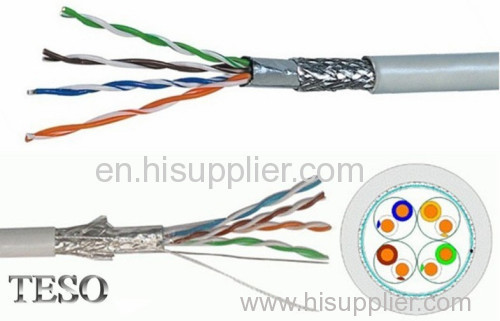

SFTP Cat5e Ethernet Lan Cable Bare Copper With Shielded , PVC Jacket

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 305m/Box

Application: Networking

Brand Name: TESO

Number of Conductors: 8cores

Conductor: Bare Copper

Jacket: PVC, LSZH, CMR,CMP

Insulation: HDPE

Rate: 100M

Production Capacity: 200km/day

Delivery Date: 15-20days

Type: SFTP

Weight: 12.9

Operating Temperature: -20°C - +75°C (-4°F - +167°...

Certification: UL,CE ,ROHS

Product Name: Ethernet Lan Cable

AWG: 24AWG

utp cat5e lan cable 4pr 24awg.
*Conductor: 1/0.50mm Bare copper , soft annealed bare copper.
*Outer jacket: PVC,LSZH,CMR,CMP are available.

Introduction:

TESO-LN-SFTP is a High Performance LAN Cable suitable for Perfect Audio, Data and Video of transfer for Horizontal Network. They comply the performance of the current and proposed applications such as Gigabit Ethernet, 100 Base -TX, 10 BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3), 100 VG – Any LAN(I EEE802.12), 155/622 Mbps A TM, 550MHz Broadband Video, Voice, T1 and ISDN.

TESO-LN-SFTP is a Shielded Horizontal Communication cable with 24AWG x 4Pair with a standard of EN 50173 2ed - EN - IE C 60332-1-2 - ISO/IEC 11801 2ed - TIA/EIA 568-B.2-1.

Description

Rated Temperature 75℃

Standard: TIA/EIA568B.2,YD/T1019-2001

Conductor Solid Bare copper

AWG: 24

Insulation: HDPE

Twisted pair Four

Shield: Pe-Tape + Al foil

Drain wire: Solid Tinned copper

Braiding Shield: Solid Tinned copper

Jacket: PVC

Rip cord: Per request

Application:

100	Base-T4
100	Bsdr-TX
100	VG-Any lan
622	Mbps ATM

Electrical Characteristics

Frequeney	Impedance	RL	Attenuation	Next	Elfext	Psnext	Delay
MHz	ohm	dB	dB/100m	dB	dB	dB	Ns/100m
0.772		19.4	1.8	67.0	64.0	66.0	574
1.0		20.0	2.0	65.3	62.3	63.8	570
4.0		23.0	4.1	56.3	53.3	51.7	552
8.0		24.5	5.8	51.8	48.8	45.7	546
10.0	100+/-15	25.0	6.5	50.3	47.3	43.8	545
16.0	100+/-15	25.0	8.2	47.3	44.3	39.7	543
20.0		25.0	9.3	45.8	42.8	37.7	542
25.0		24.3	10.4	44.3	41.3	35.8	541
31.3		23.6	11.7	42.9	39.9	33.9	540
62.5		21.5	17.0	38.4	35.4	27.8	538
100.0		20.1	22.0	35.3	32.3	23.8	537

Applications Supported

Network Sciences Category 5E cable is designed to support any data or voice system that is capable of running over a Category 5E system. When used with Category 5E patch panels and outlets from the Network Sciences range the combined performance exceeds the Category 5E/Class D-2000 link and channel requirements. The chart below shows the performance requirements of today's networking protocols.

Protocol	Common	Bit Rate	Bandwidth	Cabling Class used*
Protocol	Pairs	Bit Rate	Bandwidth	Cabling Class used*
Analogue Voice Systems	1	Analogue	< 1MHz	Category 5 (Class D)
Digital Voice Systems	1	Analogue	< 1MHz	Category 5 (Class D)
ISDN	1 & 3	64/128Kbits	< 1MHz	Category 5 (Class D)
ICL	2 & 4	1Mbits	<16MHz	Category 5 (Class D)
10BaseT	2 & 3	10Mbits	16MHz	Category 5 (Class D)
4/16 Mbit Token Ring	1 & 3	4/16Mbits	20MHz	Category 5 (Class D)
100BaseT	2 & 3	100Mbits	32MHz	Category 5 (Class D)
100BaseT4	1, 2, 3 & 4	100Mbits	16MHz	Category 5 (Class D)
155 ATM	2 & 4	155Mbits	100MHz	Category 5E (Class D-2000)
AS400	1 & 2	2Mbits	<16MHz	Category 5 (Class D)
IBM 3270	1 & 2	1Mbits	<16Mhz	Category 5 (Class D)
Baseband Video CCTV, etc.	1	Analogue	<10MHz	Category 5 (Class D)
Building Management Systems	1, 2, 3 & 4	Analogue	<1MHz	Category 5 (Class D)
1000BaseTx	1, 2, 3 & 4	1Gbits	100MHz	Category 5E (Class D-2000)
1000BaseT	2&3	1Gbits	250MHz	Category 6 (Class E-2000)
